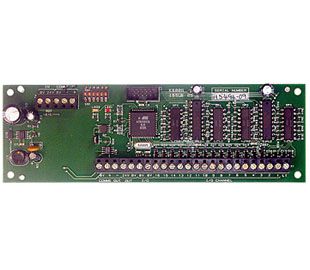

16 Channel Input/Output Board

STANDARD FEATURES

• 16 channels of input/output points.
• 32 I/O boards per FireNET panel (512 channels of input/output points).
• Each channel configurable as input or output point.
• Inputs are opto-isolated non-supervised pulldown type triggered.
• Outputs are open collector transistor pulldown type (100mA max each).
• Simple 4 wire connection to control panel (2 for power, 2 for data).
• All inputs/outputs can be assigned to global functions, any event category, and used in network wide.
• Cause & Effect logic.
• Can be mounted locally within control panel enclosure or remotely via FN-ACC accessory enclosure up to 4000ft from the panel.
• Each I/O board has a unique address 1-32 (set via DIP switch) on the I/O.
• Comms Bus Input/Outputs are for secondary use, not for primary fire initiation inputs or notification outputs.
• Two LED's are provided for communication status
