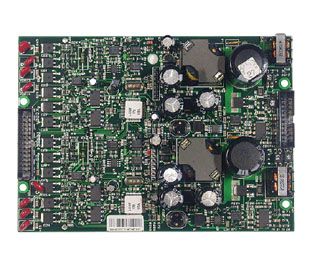

Dual SLC Loop Expander

STANDARD FEATURES

• Adds two SLC loops to a two loop FireNET control panel

• Each SLC loop is capable of 127 sensors/modules, plus 127 analog sounder bases, for a potential total of 254 addresses per loop (127+127 per loop)

• FN-4127-SLC can be added at the factory or installed in the field

• Supports Class A and B wiring methods per NFPA72 Styles 4, 6, and 7 (with isolators)

• Fully supervised & power limited SLC loops

• Supports Hochiki’s DCP (Digital Communication Protocol) loop protocol

• Same functionality as built-in SLC loops of FireNET control panel

• One SLC expander (maximum) may be added per FireNET control panel

• Each SLC loop is completely independent and autonomous

• Uses standard wire, no shielded or twisted pair required on SLC loops
