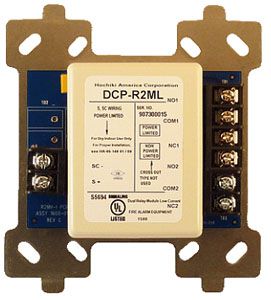

Dual Relay Module

STANDARD FEATURES

Provides two independently configurable Form C contacts per address

Contacts are rated as follow:

R2ML: 2A @ 30 VDC / 0.5A @ 120 VAC

R2MH: 8A @ 30VDC / 4.8A @ 250 VAC

Up to 127 devices can be used on each SLC loop

Visible Bi-colored LED is software controlled and can be programmed to blink red or green when polled. The LED can be latched on when activated. (For All Models)

Yellow LED indicates a short circuit condition (R2ML-I & R2MH-I only)

Programming is highly flexible providing 16 priority states plus zoning capability

Operates on Class A or Class B SLC loop UL 864 Listed
